Please contact ATS Norway (+47 4***, pos***@ats.no) for more information

Please provide reference number upon request: 23410

Specifications:

<ul>
<li>Produced in 2012</li>
<li>Hours: approximately 11,200</li>
<li>122 kW</li>
<li>Net weight: approx. 10,000 kg</li>

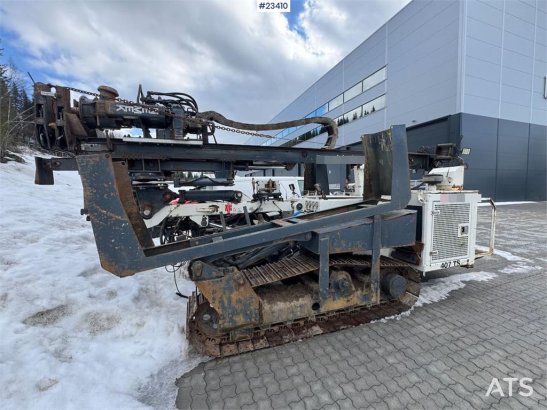

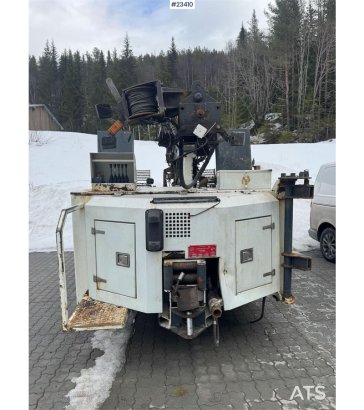

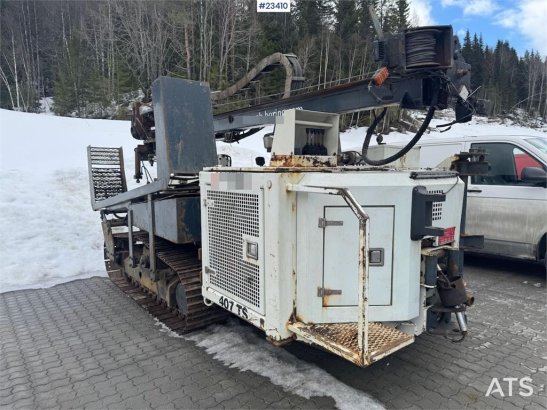

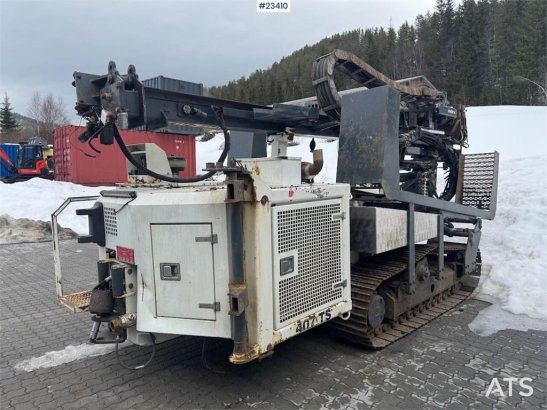

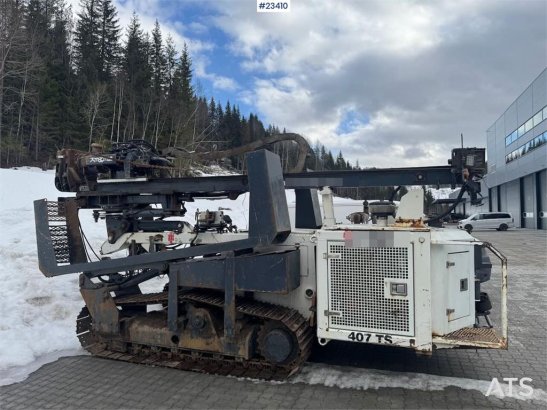

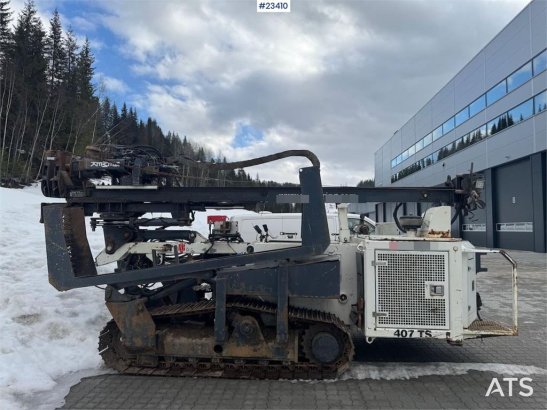

<li>Chassis (see pictures)</li>
<li>280mm</li>
<li>New tube magazine</li>
<li>Cavotec radio</li>
<li>Custom undercarriage with oscillation, IVA 450 mm 3-groove track shoes</li>

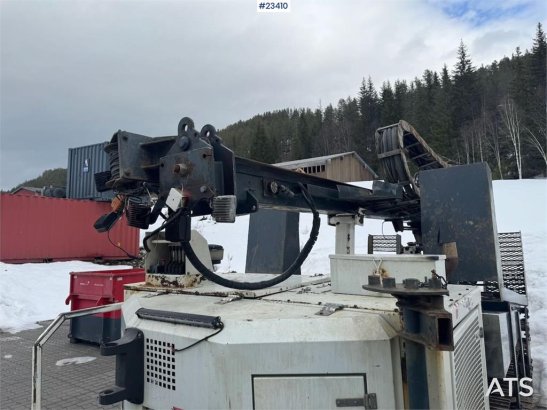

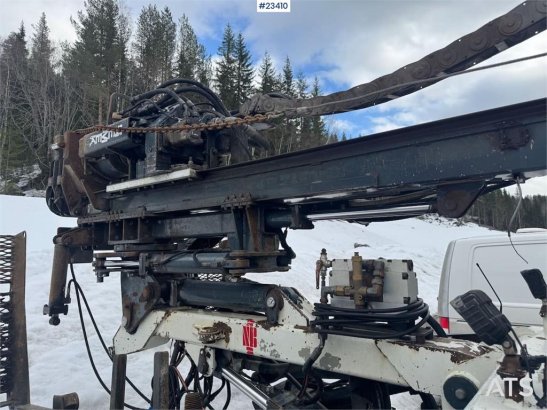

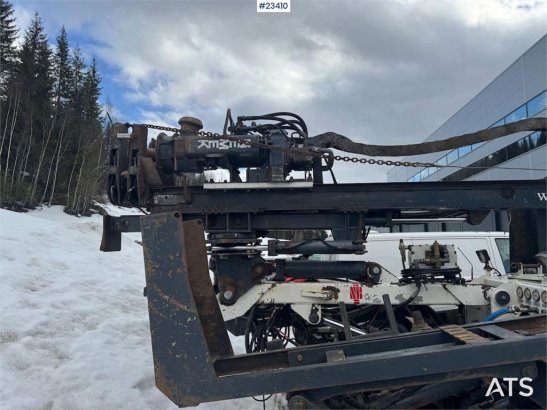

<li>Nemek M-407 mast, with 7 ton lifting capacity, mounted on extended feeder bracket with 1 m telescope</li>
<li>Nemek 260/520 kpm rotation with 2 3/8 API spindle (0-130 rpm).</li>
<li>Transition adapter from 2 7/8%u201D API IF to 3 API Reg and further to 2 3/8 API included.</li>
<li>DEUTZ water-cooled diesel engine type TCD 2013 O4L 2V Performance according to ISO 3046/1: 122 kW at 2000/min./25 C</li>
<li>ambient temp. EURO Step 3.</li>
<li>Stepless torque limitation and speed of rotation from radio control</li>

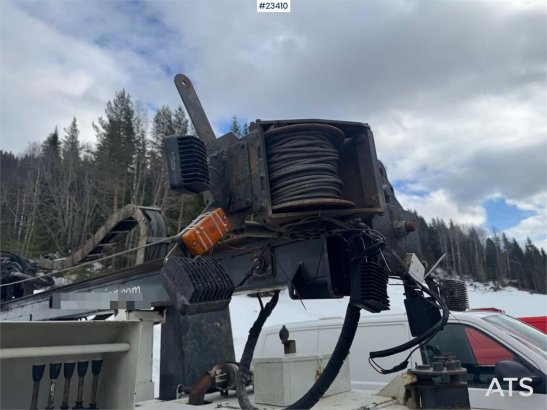

<li>Nemek 400 kg top winch w/lowering valve and brake.</li>
<li>Motor heater for 230 VAC</li>
<li>24 VDC electrical system, with 2x57Ah dry battery</li>

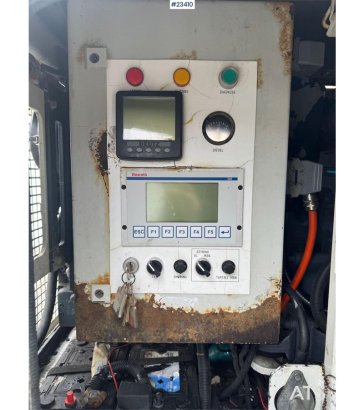

<li>Monitoring with automatic stop and error indication.</li>
<li>Electric proportionally controlled hydraulics for all drilling and boom functions, - CAN BUS</li>
<li>Proportional regulation of feed and back pressure from radio control</li>
<li>Hydraulically driven pump for drilling oil</li>
<li>Brush tte 280 mm with double hydraulic key</li>
<li>R pliers cylinder</li>
<li>2 pcs. liftable drill bit magazine with telescope, for 60 pcs. 76 mm drill bits,</li>
<li>Prepared mounting for mounting VBG towbar</li>
<li>Air reducer with outlet, 3-10 bar</li>
<li>Odex arrester housing 305 mm</li>

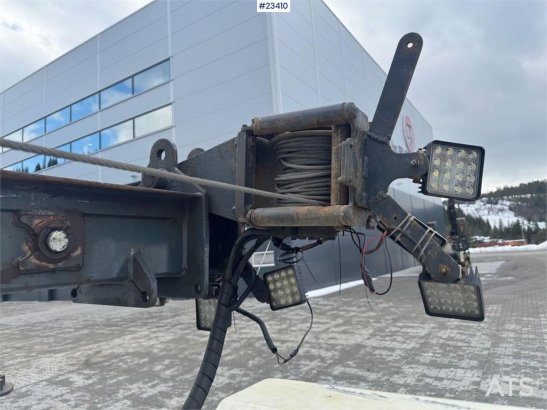

<li>Rear-mounted winch 6 tons of pulling force</li>
<li>Water tank mounted under the right tube magazine</li>
<li>Toolbox mounted under left hand magazine</li>
<li>Hydraulically driven water pump 150 l/min. 90 Bar.</li>
<li>Hydraulically powered welding machine/generator.</li>
<li>2 rear-mounted support legs</li>
</ul>


Own weight: 10000
Model: 407TS Borerigg
