Name: JMG MC250.09FL Valid inspection, *Guarantee! Fully Ele 2023 JMG - MC250.09FL - 63247
Brand: OTHER EQUIPMENT
SKU: JMG-FOR-474390

Forklift

🇳🇱 Informatie in het Nederlands:

Brandstofsoort: Diesel
Maximale doorrijhoogte: 286 cm
Resterend profiel voorbanden: 95
Resterend profiel achterbanden: 95
Maat voorbanden: -
Maat achterbanden: -
Afmetingen (LxBxH) (m): 4.12x1.8x2.85
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

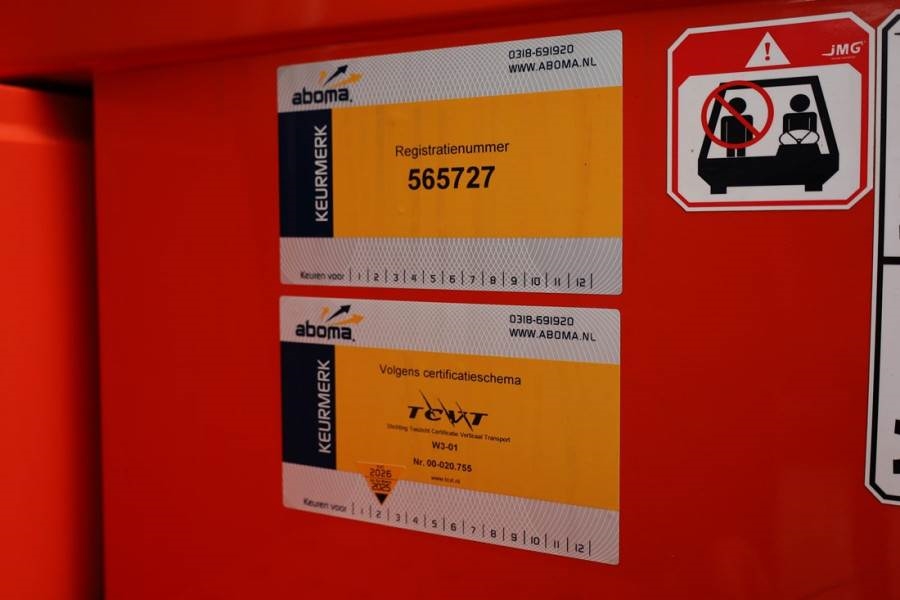

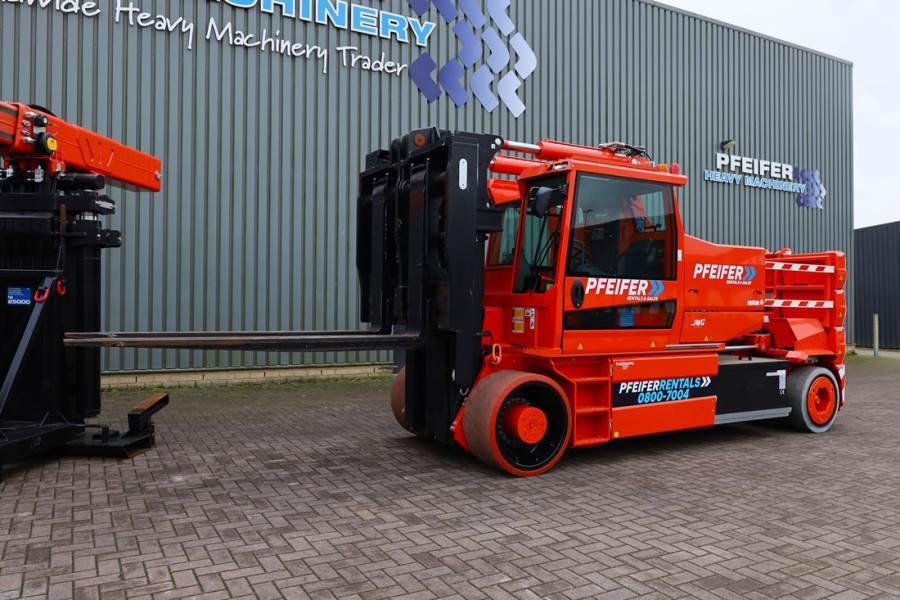

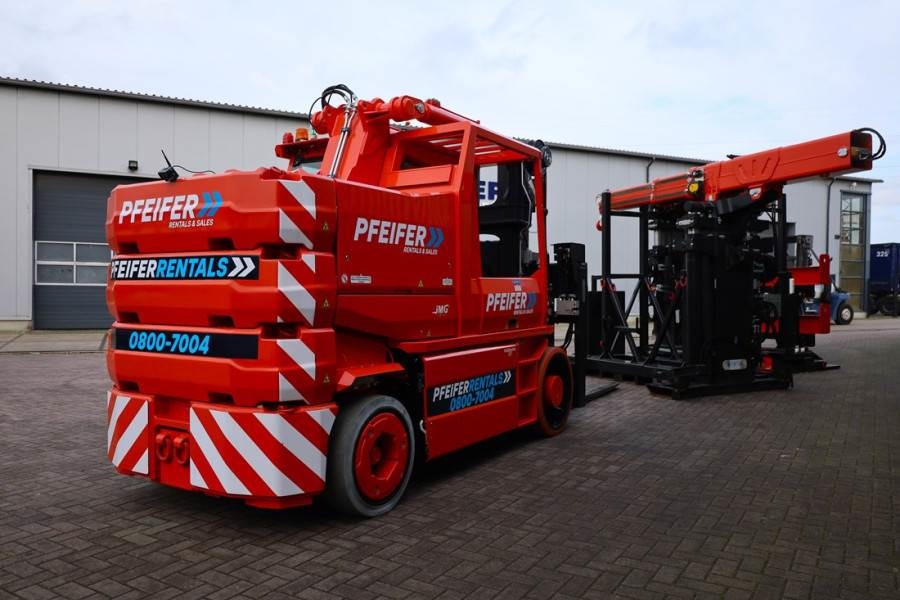

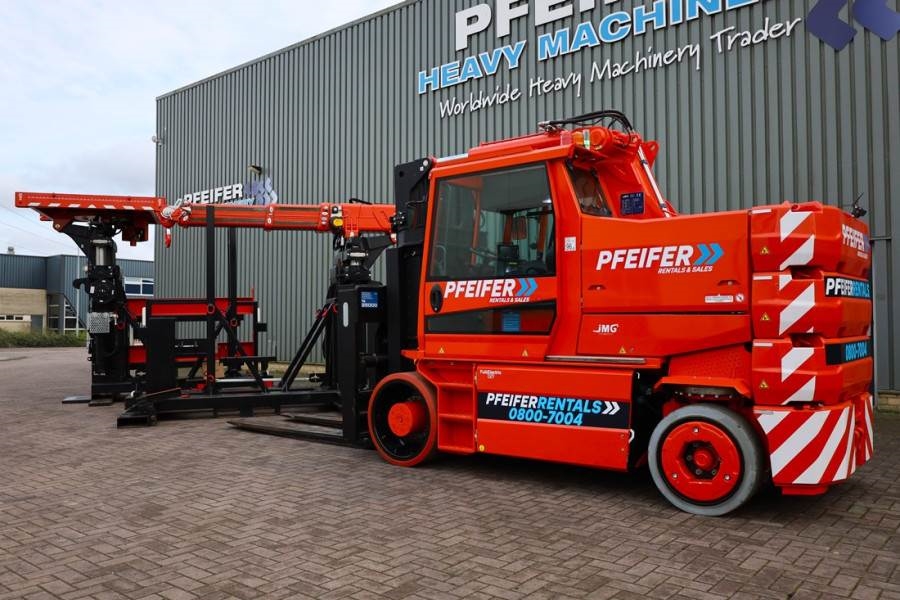

This JMG Forklift Crane has a valid inspection and can be sold with warranty. Inform about our conditions!

This JMG MC250.09FL is also available for rental!

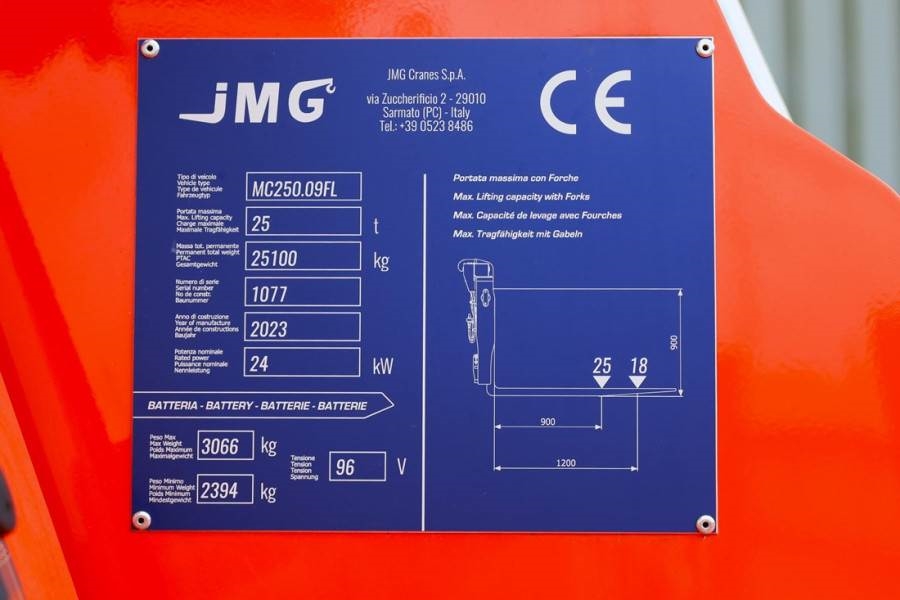

Manufacturer: JMG
Typ: MC250.09FL
Building Year: 2023
Fuel: Electric
Serial number: 1077

Max. capacity: 25.000 kg
Lifting height: 2.600 mm with forks
Lifting height: 8.000 mm with Hydraulic crane boom
Mast Type: Duplex (Triplex with Hydraulic crane boom)

Total weight with forks Kg. 25.000
Total weight with crane boom Kg. 27.500
Crane boom weight Kg. 3.000
Removable ballasts weight Kg. 6.000

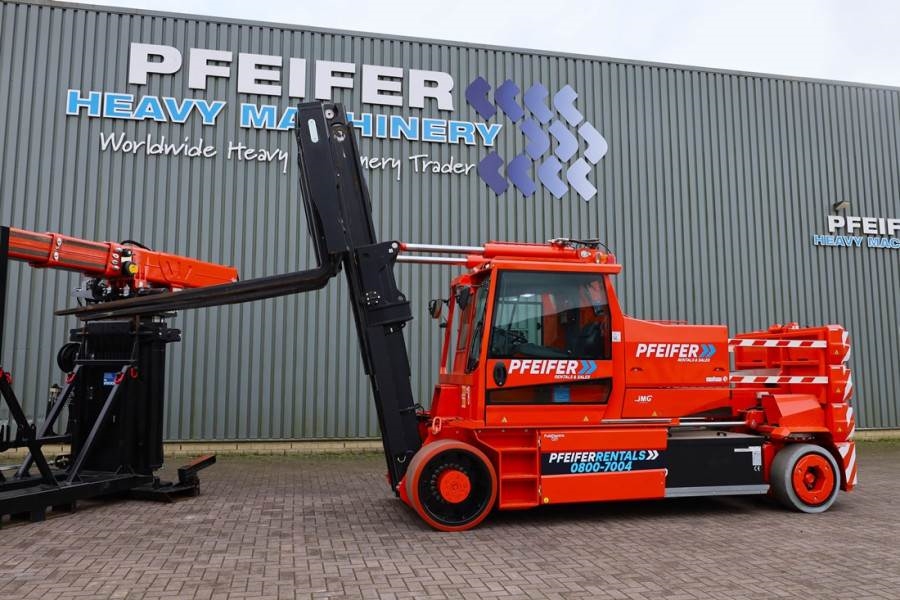

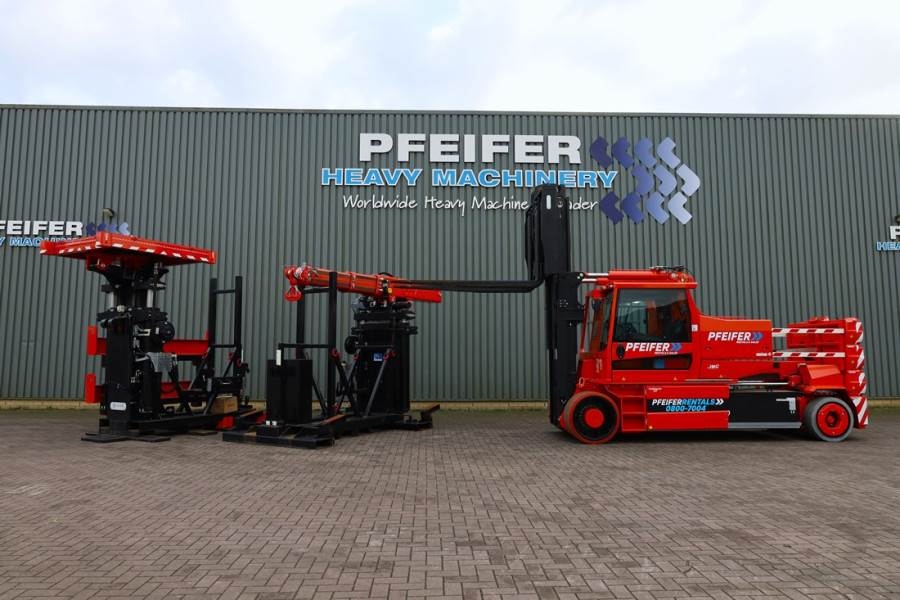

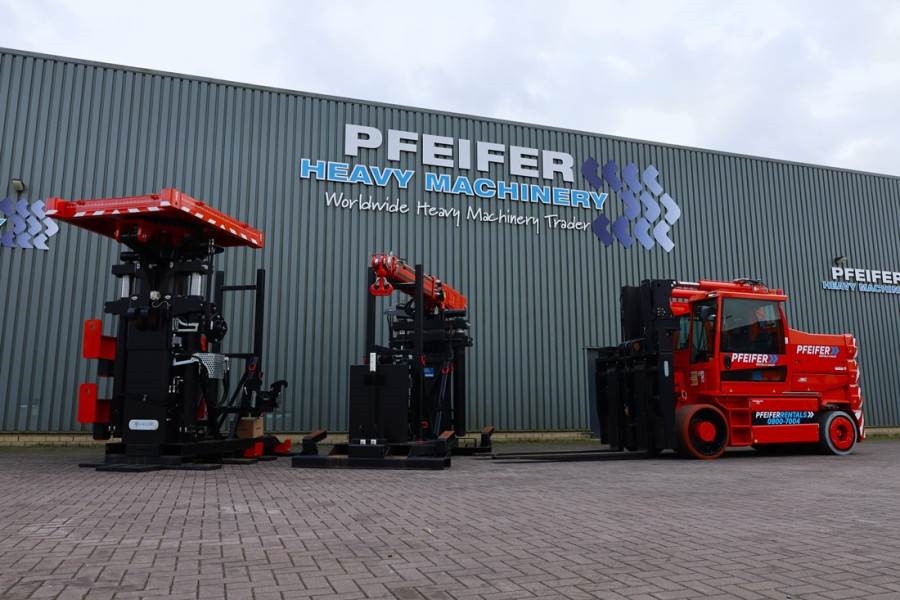

JMG MC250.09FL forklift is equipped with an attachment that can lift overhead cranes weighing up to 16 tons.
This attachment also allows the overhead crane to rotate, making it possible to position it very precisely and quickly!

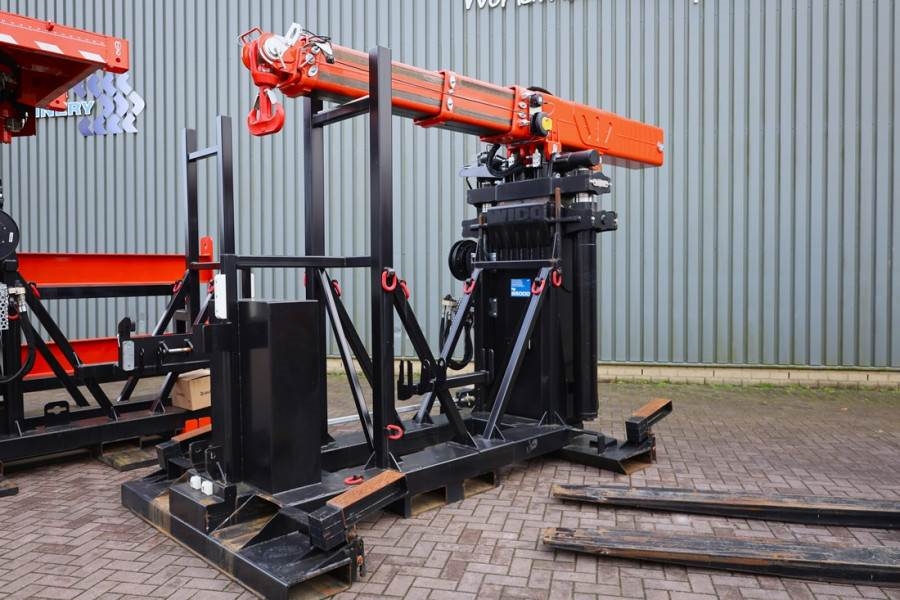

Additionally, this forklift has a crane arm attachment that can lift 3.5 tons at a height of 8 meters and a distance of 5 meters!

JMG MC250.09FL Forklift - Key Features & Specifications

Fully Electric Powertrain:
Equipped with an AC 35 kW 96V electric motor for the main drive.
Two additional AC 12 kW motors for front-wheel drive, providing exceptional efficiency and reduced environmental impact.

Impressive Lifting Capacity:

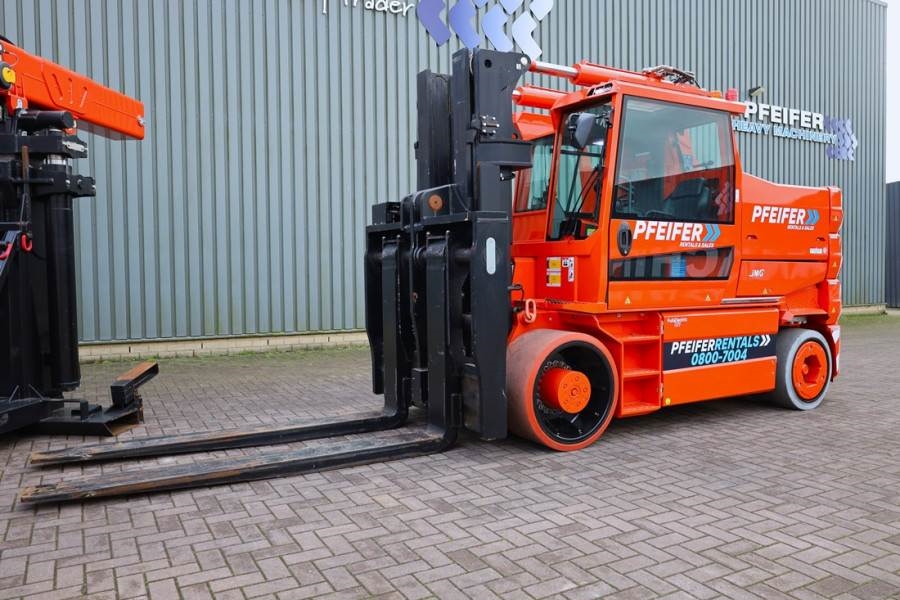

Maximum lifting capacity of 25 tons at 0.9 meters with hydraulic forks.

Compact Design:
Dimensions: 4120 x 1800 x 2850 mm.
Steering range of -90° to +90°, allowing excellent maneuverability in tight spaces.

Hydraulic Safety Features:
Hydraulic brakes on all wheels with automatic or button-activated parking brakes on the front wheels.
Mast tilt control of +12°/-7° for precision handling.

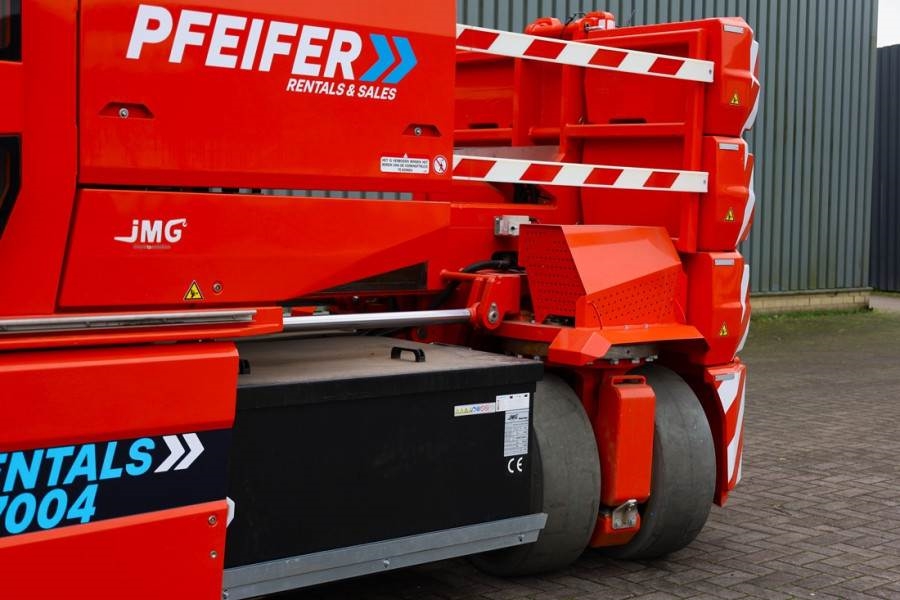

Modular Ballast System:
Removable ballast weighing 6,000 kg, offering flexibility for different load requirements.

Advanced Optional Features:
Hydraulic crane boom with electronic safe load indicator and tilting moment limiter.

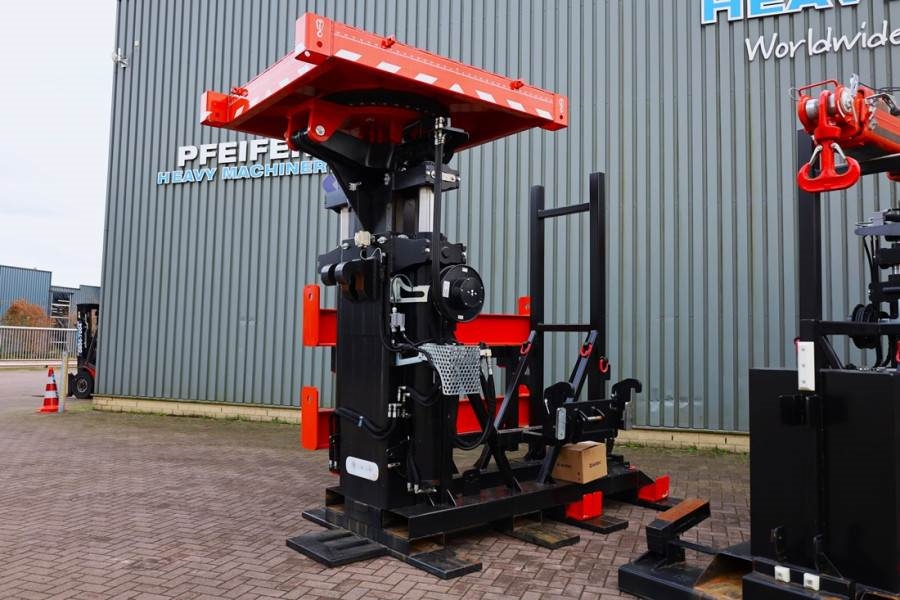

Attachment that can lift overhead cranes weighing up to 16 tons.
Non-marking tires to protect sensitive floors.

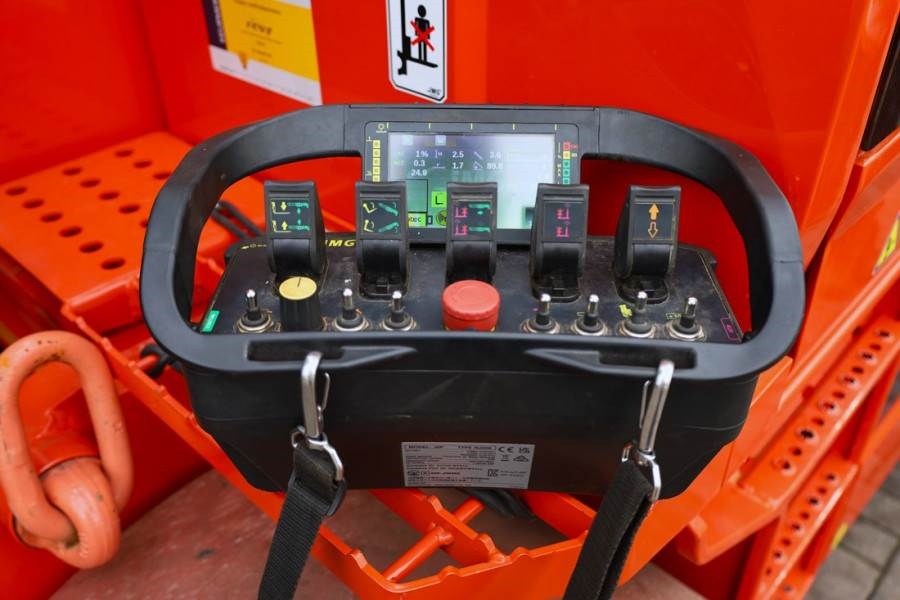

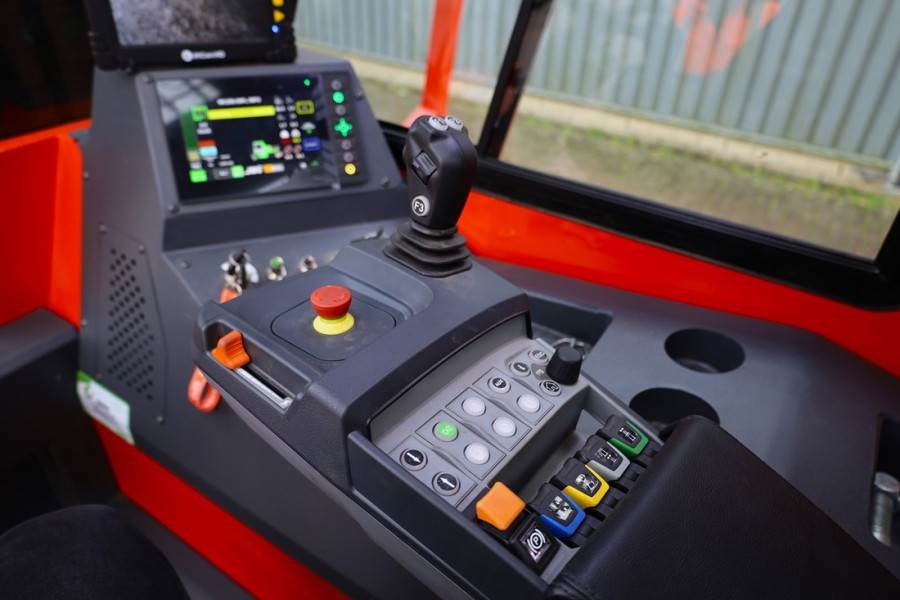

Radio remote control for enhanced operational control.

Mast Free Lift & Flexible Configuration:
Features a free-lift mast and retractable forks, making it versatile for various tasks.

CE (Declaration of Conformity).

FOR MORE INFORMATION AND ALL SPECS PLEASE FEEL FREE TO CONTACT US!

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.



🇬🇧 Information in English:

Type of fuel: Diesel
Maximum passing height: 286 cm
Front tyres / undercarriage remaining: 95
Rear tyres remaining : 95
Tyre brand: -
Front tyre size: -
Rear tyre size: -
Transport dimensions (LxWxH): 4.12x1.8x2.85
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
